Package conveyor technology

Product features mat segment

The conveyor technology for packages takes over the packages of the robot cell and leads them to a transfer station in the robot cell.
The side guides of the offered conveyor technology are made of galvanized steel as well as the level adjustable feet.

The modular conveyor technology is designed for a transport speed of 0,2 – 0,8 m/second and is driven by three phase asynchronus motors from SEW.

From development to production and commissioning all departments are in our house. This ensures a tuned and thought out concept with optimal functionality.

The conveyor technology is operated via our roTeg-Control. The software developed in house is optimal adapted to the wishes of the customers and ensures smooth and coordinated processes.

Also peripherals such as pallet wrappers and labelers can be combined with the conveyor technology. By communicating with a merchandise management system the tracking of product batches is possible.

Usage

The conveyor technology is used as a mat segment for the straight transport of the packages.

The combination of several segments to extend the transport route is possible such as the use of a segment as an end piece in combination with a centering.

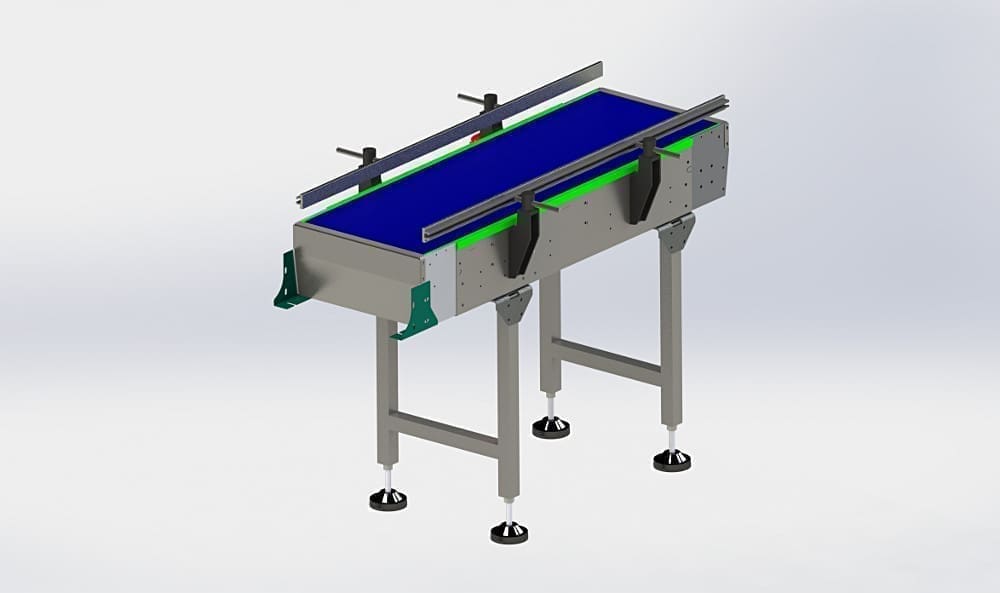

Mat segment

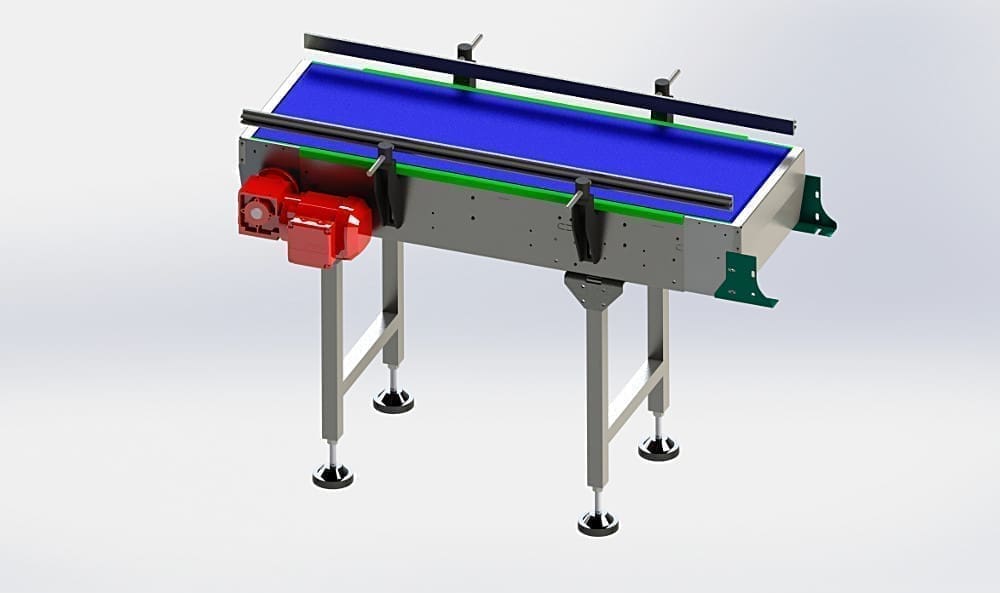

Mat segment

Application advantages

  • Feeding of packages in the robot cell

  • Buffer and accumulation line for packages

  • Double decker capable

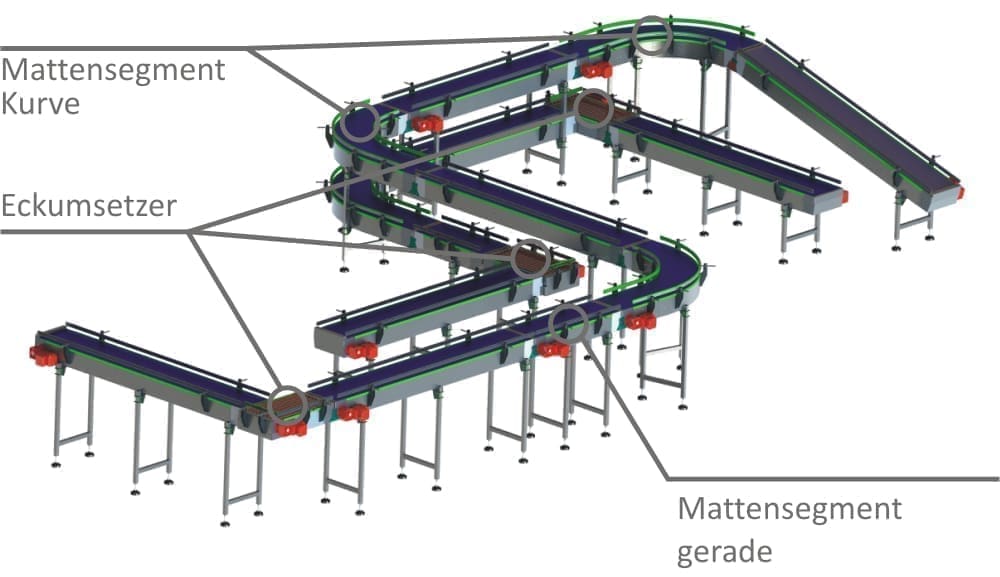

Example for mat segments

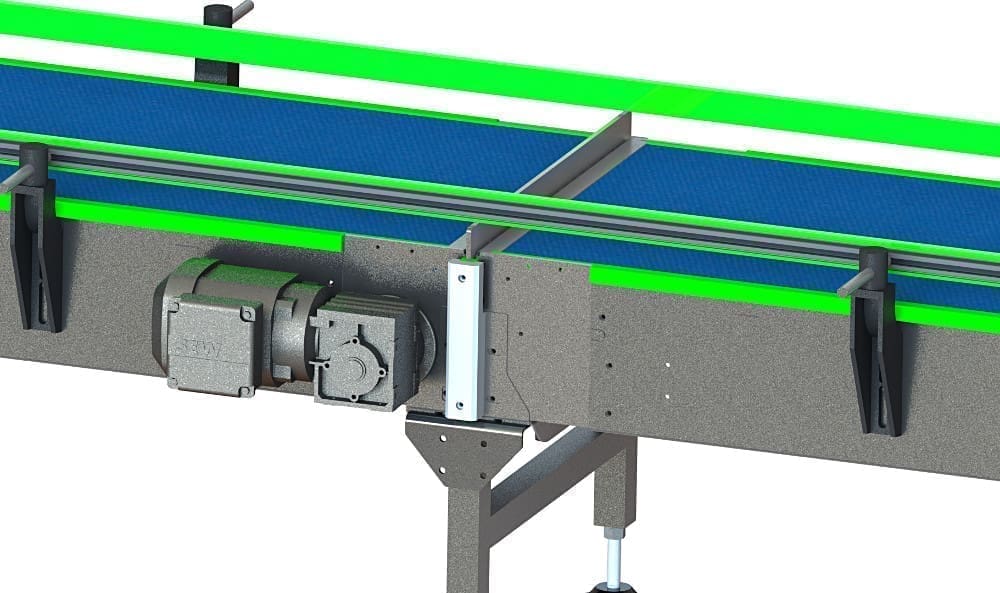

Close up mat segment

Features

  • Possible combinations of the segments

  • Robust, galvanized steel construction

  • Integration into the central control of the robot

  • Combination with possible stoppers and automatic railing guidance possible

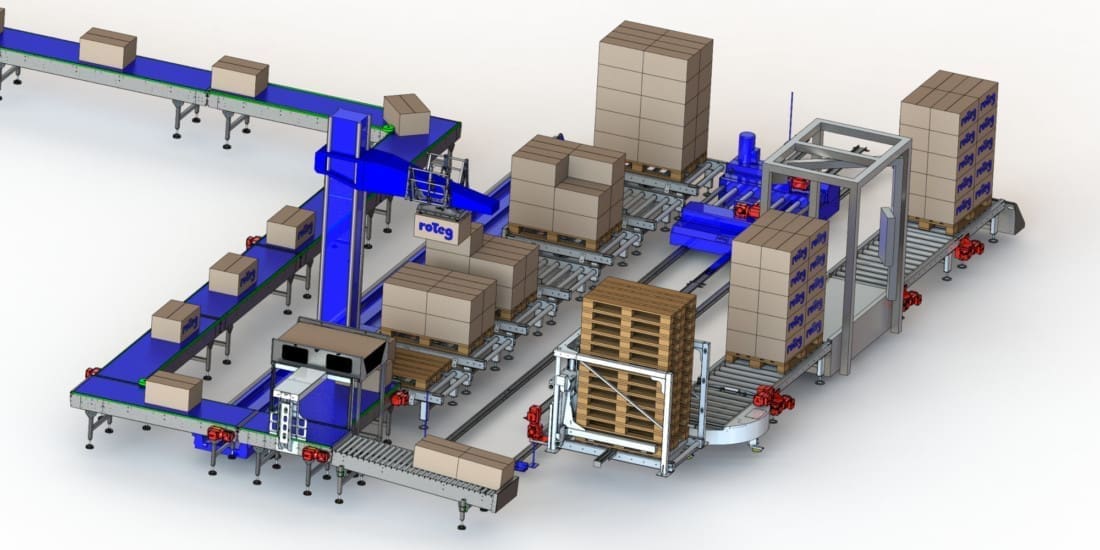

Application example in palletizing system

Mat chains

Summary

Use for production

The mat segments are used to transport the packages in a straight line.

The combination of more segments to extend the transport route is possible such as the use of a segment as an end piece in combination with a centering.
